adc.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	tadc

Macros
#define	ADC_HZ1000   1
#define	ADC_HZ100   10
#define	ADC_HZ10   100
#define	ADC_HZ5   200
#define	ANZ_ADC   2

Functions
uint8_t	adc_sequencer (void)
uint16_t	adc_get (uint8_t mux)
uint16_t	adc_wait (uint8_t mux)
void	adc_init (void)

Variables
tadc	adc_cntrl [ANZ_ADC]

Macro Definition Documentation

#define ADC_HZ10   100

Definition at line 14 of file adc.h.

#define ADC_HZ100   10

Definition at line 13 of file adc.h.

#define ADC_HZ1000   1

Definition at line 12 of file adc.h.

#define ADC_HZ5   200

Definition at line 15 of file adc.h.

#define ANZ_ADC   2

Definition at line 18 of file adc.h.

Function Documentation

uint16_t adc_get

(

uint8_t

mux

)

Definition at line 124 of file adc.c.

                                { //holen des aktuellen wandlungswertes
  uint16_t val=-1;
  register tadc * padc=adc_cntrl;
  while( padc<adc_cntrl+ANZ_ADC ) {
    if( padc->mux==mux ) {
      ATOMIC_BLOCK( ATOMIC_RESTORESTATE ) {
        val=padc->value;
        break;
       }
     }
    ++padc;
   }
  return val;
 }

void adc_init

(

void

)

Here is the caller graph for this function:

uint8_t adc_sequencer

(

void

)

uint16_t adc_wait

(

uint8_t

mux

)

Definition at line 139 of file adc.c.

                                 { //warten bis auf diesem kanal eine neue messung vorliegt und dann liefern
  register tadc * padc=adc_cntrl;
  while( padc<adc_cntrl+ANZ_ADC ) {
    if( padc->mux==mux ) { //dieser kanal
      uint8_t tid=eRTK_GetTid();
      uint8_t m_sc;
      ATOMIC_BLOCK( ATOMIC_RESTORESTATE ) {
        padc->tid=tid;
        m_sc=padc->scaler;
        if( !m_sc ) {
          padc->scaler=1; //damit er im naechsten takt wandelt
         }
        eRTK_SetSuspended( tid );
        eRTK_scheduler();
       }
      padc->scaler=m_sc;
      return padc->value;
     }
    ++padc;
   }
  deadbeef( SYS_UNKNOWN );
  return 0;
 }

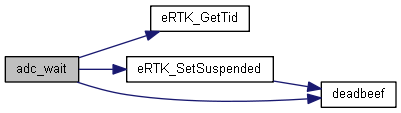

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

tadc adc_cntrl[ANZ_ADC]

Definition at line 77 of file main.c.
